Custom Guardrail/Plugins Configuration

Configure custom guardrails for validation and security.

Custom Guardrails/Plugins are a way to introduce custom “validation” or “mutations” to the request and response of the LLM. You can implement custom security policies, PII detection, content moderation specific to your use case.

Reference integrations (deployable wrappers)

Before building from the template below, you can deploy production-ready FastAPI wrappers from the integrations-custom-guardrails monorepo. Each wrapper implements the custom guardrail response contract; you deploy the service (TrueFoundry, Docker, Render, or any host with a public HTTPS URL), then register Custom Guardrail configs in AI Gateway → Guardrails pointing at the wrapper endpoints.

Arthur AI

Arthur GenAI Engine stateless validation for prompt injection, toxicity, and hallucination checks—validate-only SaaS.

DeepKeep

DeepKeep AI Firewall for PII replace, secret-key blocking, prompt-injection defense, and toxic-language filtering.

Guardrails AI

Hub validators for PII, secrets, toxicity, and profanity—runs locally in the wrapper pod.

Lasso Security

SaaS classify (validate) and classifix (mutate) via Lasso API v3—policy in the Lasso console.

NVIDIA NeMo

LLM-judged self_check_input / self_check_output rails for jailbreak and output safety.

Verra

Managed AI governance for regulated industries—validate and mutate (PII/secrets redaction) with SOC 2 / HIPAA audit trail.

These appear on the Integrations → Guardrails page alongside native provider integrations. They use the same Custom Guardrail dashboard flow as the template repository.

Template Repository Overview

The custom guardrails template repository provides a comprehensive FastAPI application with multiple guardrail implementations. It serves as a starting point for building your own custom guardrail server with best practices and example implementations.

Architecture

The template follows a modular architecture:

• main.py: FastAPI application with route definitions
• guardrail/: Directory containing all guardrail implementations
• entities.py: Pydantic models for request/response validation
• requirements.txt: Dependencies and libraries

Custom guardrail response contract

The AI Gateway treats your guardrail HTTP status and JSON body as follows:

• HTTP 2xx — The guardrail ran to completion. Policy outcome and mutations are expressed only in the JSON body (see fields below). Use 2xx for both allow and deny so the AI Gateway can tell policy failure apart from infrastructure failure.

• HTTP non-2xx (4xx/5xx) or network failure — The guardrail did not complete successfully (misconfiguration, auth failure, timeout, crash). Depending on enforcing strategy, the AI Gateway may block or continue the request; this path does not mean “content not allowed.”

JSON body (2xx completion):

Field	Meaning
verdict	Optional. true = allow, false = deny. Preferred explicit signal on 2xx.
result	For mutate: full OpenAI-shaped requestBody or responseBody to apply when transformed is true. For validate: if verdict is omitted, boolean false still means deny.
transformed	For mutate only. true = replace request/response with result; false = do not replace (even if result is present).
message	Optional human-readable text for logs/UI; not used for allow/deny decisions.

Why this matters: With enforce_but_ignore_on_error, only non-2xx / runtime errors are candidates to ignore. If the signal is “blocked” with HTTP 400, the AI Gateway may treat that as a runtime error and allow the request—use 2xx + verdict: false instead.

Entities and Data Models

The template defines several Pydantic models that structure the data flow between TrueFoundry AI Gateway and your custom guardrail server.

RequestContext

class SubjectType(str, Enum):
    user = 'user'
    team = 'team'
    serviceaccount = 'serviceaccount'

class Subject(BaseModel):
    subjectId: str
    subjectType: SubjectType
    subjectSlug: Optional[str] = None
    subjectDisplayName: Optional[str] = None

class RequestContext(BaseModel):
    user: Subject
    metadata: Optional[dict[str, Any]] = None

RequestContext is a Pydantic model that provides structured contextual information for each request processed by your custom guardrail server. It includes details about the user (as a Subject object) and optional metadata relevant to the request lifecycle. This context is automatically populated by the TrueFoundry AI Gateway and can be leveraged for access control, auditing, or custom logic within your guardrail implementations.

For MCP tool guardrails, context.metadata also includes a claims object holding the verified claims from the caller’s inbound JWT (e.g. an Okta access token exposes cid and scp). Use these to authorize a tool call by the calling application or its scopes. The keys depend on your identity provider, and claims is absent when the caller uses an opaque / non-JWT token.

InputGuardrailRequest

class InputGuardrailRequest(BaseModel):
    requestBody: CompletionCreateParams
    context: RequestContext
    config: Optional[dict] = None

InputGuardrailRequest represents the schema for requests sent to the input guardrail endpoint. It encapsulates the original model input (requestBody), which is OpenAI-compatible and follows the schema from the official OpenAI repository, along with configuration options (config) and contextual information (context) about the request.

OutputGuardrailRequest

class OutputGuardrailRequest(BaseModel):
    requestBody: CompletionCreateParams
    responseBody: ChatCompletion
    config: Optional[dict] = None
    context: RequestContext

OutputGuardrailRequest represents the schema for requests sent to the output guardrail endpoint. It encapsulates the original model input (requestBody), the model’s output (responseBody), configuration options (config), and contextual information (context) about the request. Both requestBody and responseBody are OpenAI-compatible and follow the schemas from the official OpenAI repository.

Guardrail response models

from typing import Any, Optional

class ValidateGuardrailResponse(BaseModel):
    verdict: bool
    message: Optional[str] = None

class MutateGuardrailResponse(BaseModel):
    verdict: bool
    transformed: bool
    result: dict[str, Any]

Available Guardrails

The template repository includes five pre-implemented guardrails that demonstrate different validation and transformation techniques.

1. PII Redaction (Presidio)

Info

Endpoint: POST /pii-redaction
Type: Input Guardrail (Mutate)
Technology: Microsoft Presidio

Detects and redacts Personally Identifiable Information (PII) from incoming requests using Microsoft’s Presidio library.

Code Snippet

import copy
from entities import InputGuardrailRequest, MutateGuardrailResponse
from presidio_analyzer import AnalyzerEngine
from presidio_anonymizer import AnonymizerEngine

analyzer = AnalyzerEngine()
anonymizer = AnonymizerEngine()

def process_input_guardrail(request: InputGuardrailRequest) -> MutateGuardrailResponse:
    # Work on a full copy so `result` is always a complete OpenAI-shaped requestBody
    body = copy.deepcopy(request.requestBody)
    messages = body.get("messages", [])
    transformed_any = False

    for i, message in enumerate(messages):
        content = message.get("content")
        if not isinstance(content, str):
            continue
        results = analyzer.analyze(text=content, entities=[], language="en")
        if not results:
            continue
        anonymized = anonymizer.anonymize(text=content, analyzer_results=results)
        new_text = anonymized.text
        if new_text != content:
            messages[i]["content"] = new_text
            transformed_any = True

    return MutateGuardrailResponse(
        verdict=True,
        transformed=transformed_any,
        result=body,
    )

Response Behavior

Response Behavior (HTTP 2xx; see Custom guardrail response contract):

• transformed: false — No PII redaction applied; gateway keeps the original requestBody (you may still return e.g. { "verdict": true, "transformed": false, "result": <unchanged body> } for clarity).
• transformed: true — PII was redacted; result must be the full OpenAI-shaped requestBody to replace the incoming request.
• HTTP 4xx/5xx — Processing or dependency failure only; not used for “PII found” policy outcomes.

2. NSFW Filtering (Local Model)

Info

Endpoint: POST /nsfw-filtering
Type: Output Guardrail (Validate)
Technology: Hugging Face Transformers (Unitary toxic classification model)

Filters out Not Safe For Work (NSFW) content from model responses using a local toxic classification model.

Code Snippet

from entities import OutputGuardrailRequest, ValidateGuardrailResponse
from transformers import pipeline

classifier = pipeline("text-classification", model="unitary/unbiased-toxic-roberta")

def nsfw_filtering(request: OutputGuardrailRequest) -> ValidateGuardrailResponse:
    for choice in request.responseBody.get("choices", []):
        classification_results = classifier(choice["message"]["content"])
        for result in classification_results:
            if (
                (result['label'] == 'toxicity' and result['score'] > 0.2) or
                (result['label'] == 'sexual_explicit' and result['score'] > 0.2) or
                (result['label'] == 'obscene' and result['score'] > 0.2)
            ):
                return ValidateGuardrailResponse(
                    verdict=False,
                    message="This message is not allowed as it is NSFW",
                )
    return ValidateGuardrailResponse(verdict=True)

Response Behavior

Response Behavior (HTTP status):

• HTTP 2xx — Outcome in the JSON body (see Custom guardrail response contract).
  • Allow: e.g. { "verdict": true }.
  • Deny: e.g. { "verdict": false, "message": "…" } — blocked by policy.
• HTTP 4xx/5xx or timeout — Guardrail or dependency failed to run; not “content denied.”

3. Drug Mention Detection (Guardrails AI)

Info

Endpoint: POST /drug-mention
Type: Output Guardrail (Validate)
Technology: Guardrails AI

Detects and rejects responses that mention drugs using Guardrails AI’s drug detection capabilities.

Code Snippet

from entities import OutputGuardrailRequest, ValidateGuardrailResponse
from guardrails import Guard
from guardrails.hub import MentionsDrugs

guard = Guard().use(MentionsDrugs, on_fail="exception")

def drug_mention(request: OutputGuardrailRequest) -> ValidateGuardrailResponse:
    try:
        for choice in request.responseBody.get("choices", []):
            guard.validate(choice["message"]["content"])
    except Exception as e:
        return ValidateGuardrailResponse(verdict=False, message=str(e))
    return ValidateGuardrailResponse(verdict=True)

Response Behavior

Response Behavior (HTTP status):

• HTTP 2xx — Outcome in the JSON body (see Custom guardrail response contract).
  • Allow: { "verdict": true }.
  • Deny: { "verdict": false, "message": "…" } — blocked by policy.
• HTTP 4xx/5xx or timeout — Guardrail or dependency failed to run; not “content denied.”

4. Web Sanitization (Guardrails AI)

Info

Endpoint: POST /web-sanitization
Type: Input Guardrail (Validate)
Technology: Guardrails AI

Detects and rejects requests that contain malicious web content using Guardrails AI’s web sanitization capabilities.

Code Snippet

from entities import InputGuardrailRequest, ValidateGuardrailResponse
from guardrails import Guard
from guardrails_grhub_web_sanitization import WebSanitization

guard = Guard().use(WebSanitization, on_fail="exception")

def web_sanitization(request: InputGuardrailRequest) -> ValidateGuardrailResponse:
    try:
        messages = request.requestBody.get("messages", [])
        for message in messages:
            guard.validate(message["content"])
    except Exception as e:
        return ValidateGuardrailResponse(verdict=False, message=str(e))
    return ValidateGuardrailResponse(verdict=True)

Response Behavior

Response Behavior (HTTP status):

• HTTP 2xx — Outcome in the JSON body (see Custom guardrail response contract).
  • Allow: { "verdict": true }.
  • Deny: { "verdict": false, "message": "…" } — blocked by policy.
• HTTP 4xx/5xx or timeout — Guardrail or dependency failed to run; not “content denied.”

5. PII Detection (Guardrails AI)

Info

Endpoint: POST /pii-detection
Type: Input Guardrail (Validate)
Technology: Guardrails AI

Detects the presence of Personally Identifiable Information (PII) in incoming requests using Guardrails AI. Unlike the Presidio implementation, this only detects and reports PII without redacting it.

Code Snippet

from entities import InputGuardrailRequest, ValidateGuardrailResponse
from guardrails import Guard
from guardrails.hub import DetectPII

guard = Guard().use(DetectPII, on_fail="exception")

def pii_detection_guardrails_ai(request: InputGuardrailRequest) -> ValidateGuardrailResponse:
    try:
        messages = request.requestBody.get("messages", [])
        for message in messages:
            guard.validate(message["content"])
    except Exception as e:
        return ValidateGuardrailResponse(verdict=False, message=str(e))
    return ValidateGuardrailResponse(verdict=True)

Response Behavior

Response Behavior (HTTP status):

• HTTP 2xx — Outcome in the JSON body (see Custom guardrail response contract).
  • Allow: { "verdict": true }.
  • Deny: { "verdict": false, "message": "…" } — blocked by policy.
• HTTP 4xx/5xx or timeout — Guardrail or dependency failed to run; not “content denied.”

Request Examples

Input Guardrail Request

{
  "requestBody": {
    "messages": [
      {
        "role": "user",
        "content": "Hello, my name is John Doe and my email is [e-mail]"
      }
    ],
    "model": "gpt-3.5-turbo",
    "temperature": 0.7
  },
  "config": {
    "check_content": true,
    "transform_input": true
  },
  "context": {
    "user": {
      "subjectId": "123",
      "subjectType": "user",
      "subjectSlug": "[e-mail]",
      "subjectDisplayName": "John Doe"
    },
    "metadata": {
      "ip_address": "192.168.1.1",
      "session_id": "abc123",
      "claims": {
        "iss": "https://acme.okta.com",
        "sub": "[e-mail]",
        "cid": "0oa18x26j7k48xXjt2p8",
        "scp": ["openid", "profile", "tools.execute"]
      }
    }
  }
}

For MCP tool guardrails, context.metadata.claims carries the verified JWT claims (as shown above), so your server can authorize by the calling application (claims.cid) or its scopes (claims.scp). The exact keys depend on your identity provider.

Output Guardrail Request

{
  "requestBody": {
    "messages": [
      {
        "role": "user",
        "content": "Hello"
      }
    ],
    "model": "gpt-3.5-turbo"
  },
  "responseBody": {
    "id": "chatcmpl-123",
    "object": "chat.completion",
    "created": 1677652288,
    "model": "gpt-3.5-turbo",
    "choices": [
      {
        "index": 0,
        "message": {
          "role": "assistant",
          "content": "Hello! How can I help you today?"
        },
        "finish_reason": "stop"
      }
    ]
  },
  "config": {
    "check_content": true
  },
  "context": {
    "user": {
      "subjectId": "123",
      "subjectType": "user",
      "subjectSlug": "[e-mail]",
      "subjectDisplayName": "John Doe"
    },
    "metadata": {
      "ip_address": "192.168.1.1",
      "session_id": "abc123"
    }
  }
}

Running Locally

# Install dependencies
pip install -r requirements.txt

# Run the server
python main.py

# Or using uvicorn directly
uvicorn main:app --host 0.0.0.0 --port 8000 --reload

Adding Custom Guardrail Integration

To add Custom Guardrail to your TrueFoundry setup, follow these steps:

1. Navigate to AI Gateway

   • Go to AI Gateway in your TrueFoundry dashboard.

2. Access Guardrails

   • Click on Guardrails.

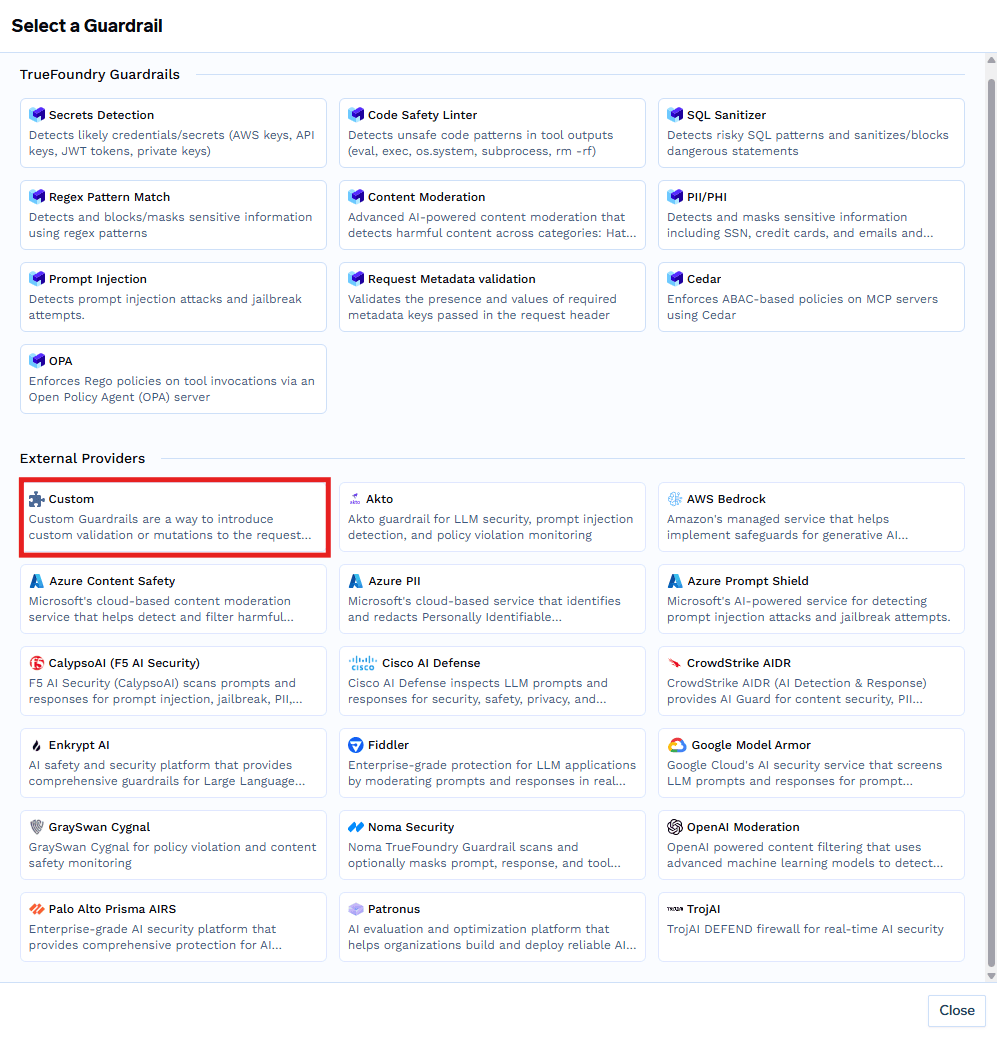

3. Add New Guardrails Group

   • Click on Add New Guardrails Group.

Navigate to Guardrails

Guardrails groups help manage access control and security policies for your LLM applications. Configure rules to prevent harmful content, ensure compliance, and maintain data privacy. For more details, refer to the Collaborator Section.

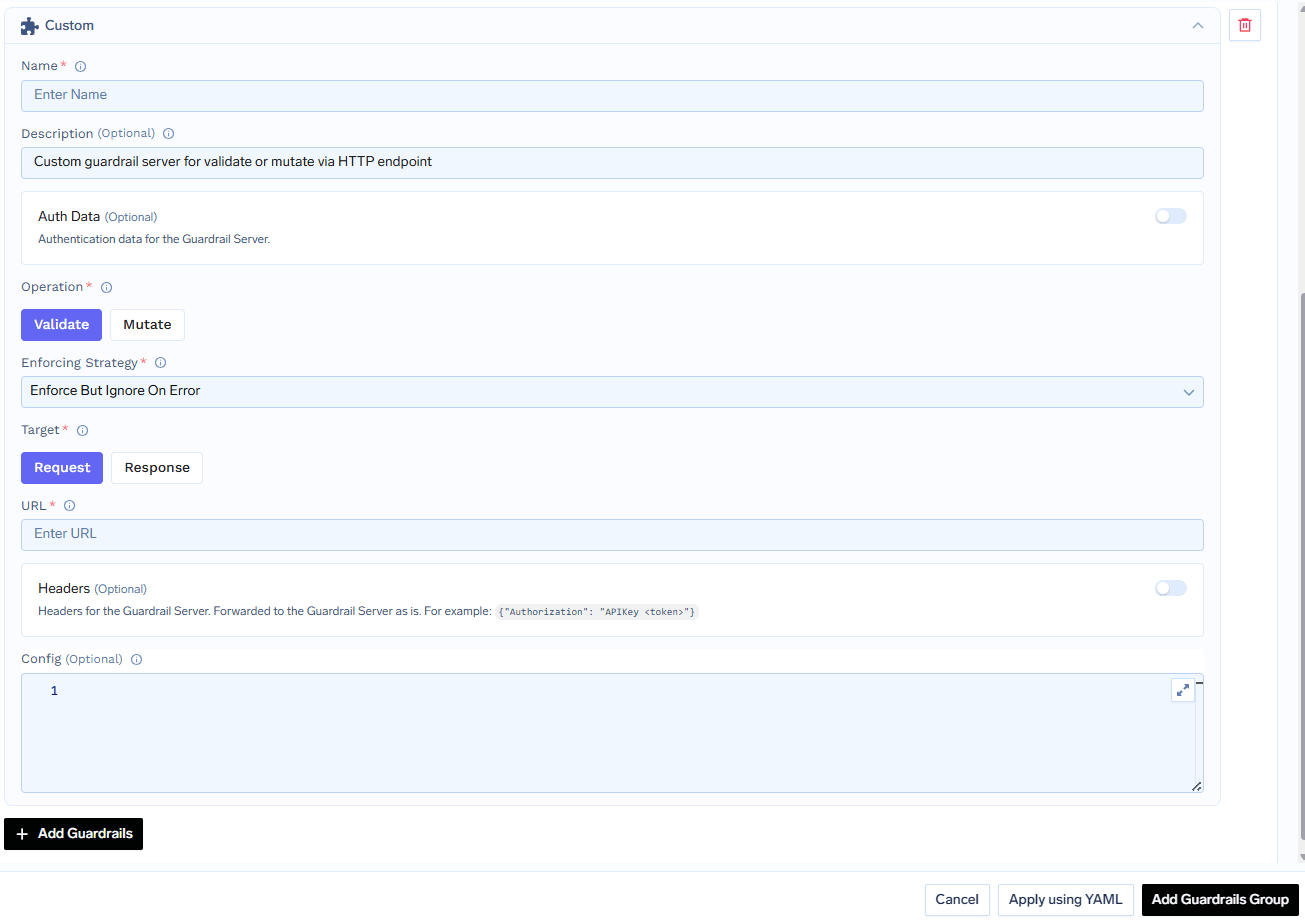

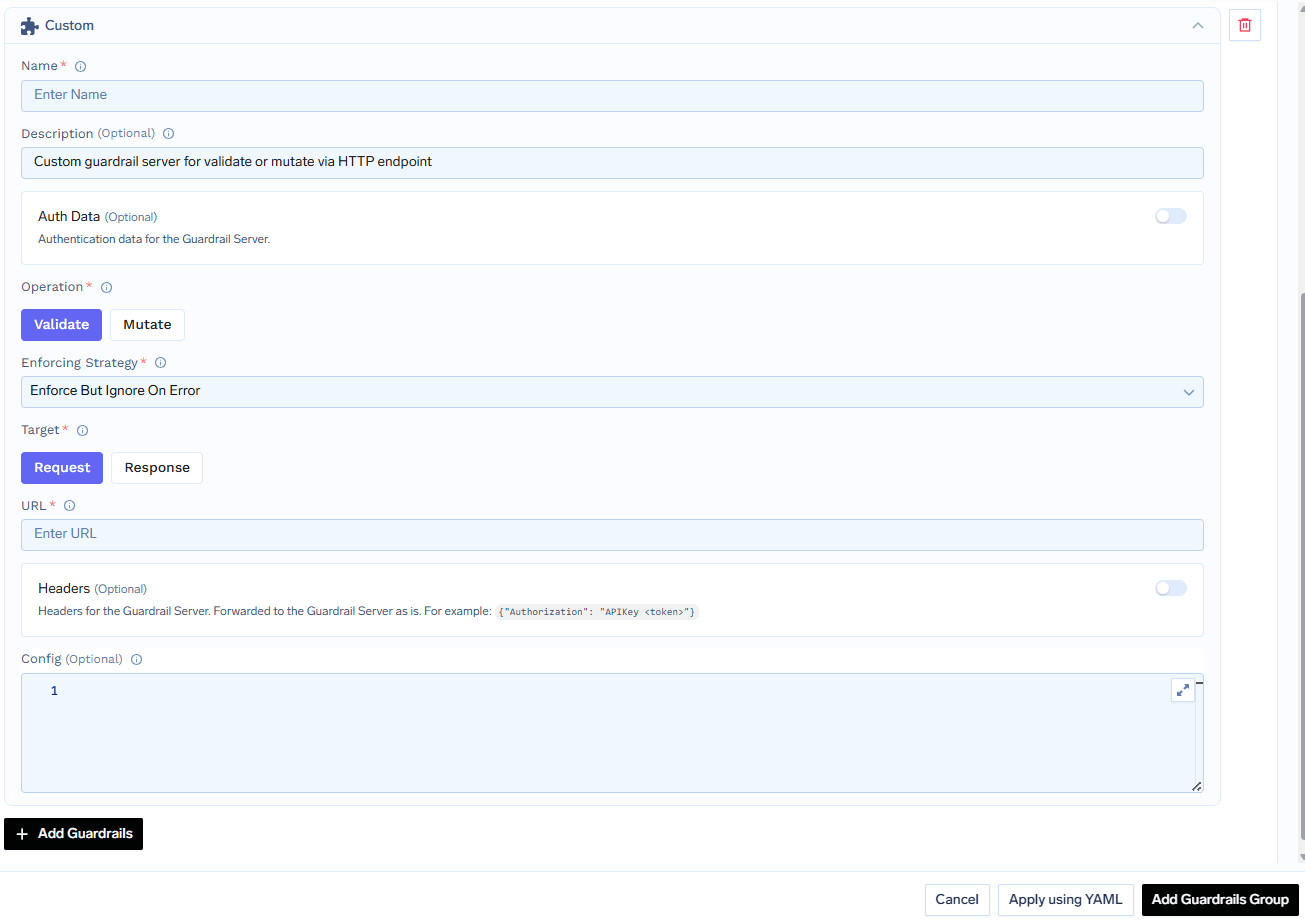

4. Fill in the Guardrails Group Form
   • Name: Enter a name for your guardrails group.
   • Collaborators: Add collaborators who will have access to this group.
   • Custom Guardrail Config:
     • Name: Enter a name for the Custom Guardrail configuration.
     • Operation: The operation type to use for the guardrail.
       • Validate: Guardrails that inspect and can block without mutating content. On LLM input validation, the AI Gateway may run these alongside the in-flight model request when applicable; on LLM output and MCP hooks, validation runs synchronously before the response or tool result is released. See Guardrails Overview — Operation Mode.
       • Mutate: Guardrails with this operation can both validate and mutate requests. Mutate guardrails are run sequentially.
     • URL: Enter the URL for the Guardrail Server.
     • Auth Data: Provide authentication data for the Guardrail Server. This data will be sent to the Guardrail Server for authorization.
       • Choose between Custom Basic Auth or Custom Bearer Auth.
     • Headers (Optional): Add any headers required for the Guardrail Server. These will be forwarded as is.
     • Config: Enter the configuration for the Guardrail Server. This is a JSON object that will be sent along with the request.

Select Custom Guardrail

Fill in the Custom Guardrail Form

How Custom Guardrail Config Relates to Guardrail Requests

When you configure a Custom Guardrail in the TrueFoundry guardrails integration creation form (as described above), the settings you provide—such as the operation type, URL, authentication data, headers, and config—directly influence how the AI Gateway interacts with your guardrail server at runtime.

How it works:

• Config Propagation:
  The Config field you specify in the integration creation form is sent as the config attribute in every guardrail request payload. This allows you to parameterize your guardrail logic (e.g., set thresholds, enable/disable features, or pass secrets) without changing your server code.

• Request Structure:
  When a request is routed through a guardrail, the AI Gateway constructs a request object (such as InputGuardrailRequest or OutputGuardrailRequest) and sends it to your server. This object includes:

  • The original model input (requestBody)
  • (For output guardrails) The model’s response (responseBody)
  • The config object (from your integration creation form)
  • The context (user, metadata, etc.)

• Example Payload:

  {
    "requestBody": { /* original model input */ },
    "responseBody": { /* model output, for output guardrails */ },
    "config": { /* your custom config from the integration creation form */ },
    "context": { /* user and request metadata */ }
  }


• Dynamic Behavior:
  By updating the Custom Guardrail Config in the integration creation form, you can change the behavior of your guardrail server in real time—no code redeploy required. For example, you might adjust PII detection sensitivity, toggle logging, or update allowed user lists.

Summary Table

Integration Creation Form Field	Sent in Guardrail Request as
Config	config
Auth Data, Headers	HTTP headers customHeaders
Operation	validate or mutate (how the AI Gateway interprets the response); combine with URL for the HTTP route your server exposes
URL	Guardrail server endpoint

This tight integration ensures that your guardrail logic remains flexible, maintainable, and easy to update as your requirements evolve.

Example: Sending a Request to Your Guardrail Server

Sample Input Guardrail Request Payload & cURL Example

Integration Form Example Values

Field	Example Value
Operation	mutate (guardrail operation); URL path is /pii-redaction
URL	https://my-guardrail-server.example.com/pii-redaction
Auth Data	Bearer <token>
Headers
Config

Sample Output Guardrail Request Payload & cURL Example

Integration Form Example Values

Field	Example Value
Operation	validate (guardrail operation); URL path is /nsfw-filtering
URL	https://my-guardrail-server.example.com/nsfw-filtering
Auth Data	Bearer <token>
Headers
Config
