Configure Guardrail Policies

Create guardrail policies that decide which guardrails run on which requests — by model, MCP server, user, team, or request metadata.

Applying guardrails on the AI Gateway is a two-step process:

1. Register guardrails

   In AI Gateway → Guardrails, create a guardrails group and add the guardrail integrations you want to use — TrueFoundry guardrails, external providers, or your own custom guardrails. See the Getting Started guide for a walkthrough.

2. Configure policies

   In AI Gateway → Policies → Guardrails, create policy rules that decide when to apply which guardrails — based on the model or MCP server being called, the user or team making the request, and request metadata — and on which hooks they run (LLM input/output, MCP tool pre/post invoke).

Registering a guardrail does not apply it to any traffic by itself. Guardrail policies are what attach registered guardrails to requests. The only exception is passing guardrails per-request via the X-TFY-GUARDRAILS header, which bypasses policies entirely.

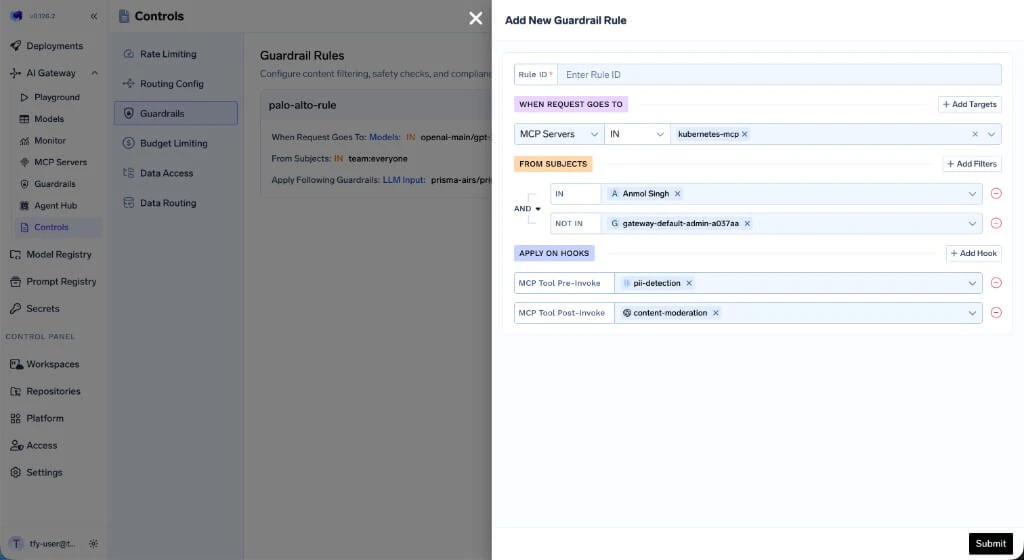

Create a Guardrail Policy

Navigate to AI Gateway → Policies → Guardrails and click Add New Guardrail Rule. Each policy is stored as its own named configuration (same grain as logging config). Give it a unique Configuration Name and fill in the following sections:

When Request Goes To (Targets)

Define which traffic the rule applies to. Click Add Targets to add conditions on:

• Models — Select one or more models with an IN or NOT IN condition. If no model condition is set, the rule matches requests to any model.
• MCP Servers — Select one or more MCP servers, and optionally narrow down to specific tools within each server (for example, only the ask_question tool of a server).

Multiple target conditions are combined with OR — the rule matches if the request goes to any of the listed models or MCP servers.

From Subjects

Specify who the rule applies to. Click Add Filters to add IN / NOT IN conditions on users, teams, or virtual accounts. For example, apply a rule to team:data-science but exclude user:[e-mail]. If no subject filter is set, the rule applies to all callers.

With Metadata

Match requests based on metadata key-value pairs sent in the X-TFY-METADATA header. For example, a rule with metadata environment: production only applies to requests carrying X-TFY-METADATA: {"environment": "production"}.

Apply on Hooks

Attach your registered guardrails to one or more hooks. Click Add Hook, pick the hook, and select the guardrail integrations to run on it:

Hook	When It Runs
LLM Input	Before the prompt is sent to the model
LLM Output	After the model responds, before the response is returned
MCP Tool Pre-Invoke	Before an MCP tool is executed
MCP Tool Post-Invoke	After an MCP tool returns, before the result reaches the model

You can attach multiple guardrails to the same hook — all of them run for matching requests.

Set a Custom Error Message

By default, when a guardrail blocks a request, the client receives the provider-specific failure detail. You can override this with a Custom Error Message per rule — useful for showing end users a friendly, actionable message instead of raw guardrail output.

The message supports two placeholders:

Placeholder	Renders
{{guardrail_message}}	The default guardrail failure detail (provider-specific violation summary)
{{failed_guardrails}}	A comma-separated list of the guardrails in this policy that failed (as group/name selectors)

For example:

Your request was blocked by {{failed_guardrails}}: {{guardrail_message}}

Custom Error Message field in the guardrail rule editor — toggle advanced fields to show it

The Custom Error Message field is an advanced field. If you don’t see it, use the Hide advanced fields toggle at the bottom of the rule editor to reveal it.

Placeholders that aren’t used are left as-is, and messages that use only {{guardrail_message}} continue to work unchanged.

How Policies Are Evaluated

• All named policies are evaluated for every request. The guardrails from all matching policies are combined (union) and applied together.
• If multiple policies match, their guardrails are merged per hook — for example, if policy A applies PII detection on LLM Input and policy B applies prompt injection detection on LLM Input, both guardrails run.
• A policy with no target or subject conditions matches all requests. Use this for baseline guardrails that should apply universally alongside any other matching policies.
• Omitted conditions are not used for filtering — if a policy has no model condition, it matches any model.

YAML Configuration

Guardrail policies can also be managed as YAML — useful for GitOps (tfy apply) or reviewing a single policy. Each policy is its own document with a unique name (not a single file with a rules[] array). See Named Guardrail Policies — v0.179 if you are migrating from the old folded schema.

Example Configuration

Two policies as two YAML documents (apply each separately):

type: gateway-guardrails-config
name: palo-alto-rule
when:
  target:
    operator: or
    conditions:
      model:
        values:
          - openai-main/gpt-3-5-turbo-16k
        condition: in
  subjects:
    operator: and
    conditions:
      in:
        - team:everyone
llm_input_guardrails:
  - prisma-airs/prisma-airs-dev-profile
llm_output_guardrails:
  - prisma-airs/prisma-airs-dev-profile
mcp_tool_pre_invoke_guardrails: []
mcp_tool_post_invoke_guardrails: []

type: gateway-guardrails-config
name: mcp-test-rule
when:
  target:
    operator: or
    conditions:
      mcpServers:
        values:
          - kubernetes-mcp
        condition: in
  subjects:
    operator: and
    conditions:
      in:
        - team:test-team
      not_in:
        - user:[e-mail]
llm_input_guardrails: []
llm_output_guardrails: []
mcp_tool_pre_invoke_guardrails:
  - pii/pii-detection
mcp_tool_post_invoke_guardrails:
  - prisma-airs/prisma-airs-dev-profile

1. palo-alto-rule — Targets requests to openai-main/gpt-3-5-turbo-16k from team:everyone, applying Prisma AIRS guardrails on both LLM input and output.
2. mcp-test-rule — Targets requests to the kubernetes-mcp MCP server from team:test-team (excluding a specific user), applying PII detection before tool invocation and Prisma AIRS after.

If a request matches both policies, the guardrails from both are combined — the request would get Prisma AIRS on LLM input/output and PII detection on MCP Tool Pre-Invoke / Prisma AIRS on MCP Tool Post-Invoke.

Policy Structure

Field	Required	Description
type	Yes	Always gateway-guardrails-config
name	Yes	Unique configuration name (letters, digits, hyphens; same pattern as other named gateway configs)
when	Yes	Matching criteria with target and subjects blocks (use {} to match all requests)
llm_input_guardrails	Yes	Guardrails applied before LLM request (use [] if none)
llm_output_guardrails	Yes	Guardrails applied after LLM response (use [] if none)
mcp_tool_pre_invoke_guardrails	Yes	Guardrails applied before MCP tool invocation (use [] if none)
mcp_tool_post_invoke_guardrails	Yes	Guardrails applied after MCP tool returns (use [] if none)
custom_error_message	No	Custom message returned to the client when a guardrail in this policy blocks a request. Supports the {{guardrail_message}} and {{failed_guardrails}} placeholders (see below).

custom_error_message placeholders

custom_error_message: "Your request was blocked by {{failed_guardrails}}: {{guardrail_message}}"

See Set a Custom Error Message for what each placeholder renders.

The when Block

The when block contains two main sections: target (what the request targets) and subjects (who is making the request):

Section	Description
target	Defines conditions based on model, mcpServers, mcpTools, or metadata
subjects	Defines conditions based on users, teams, or virtual accounts

If when is empty ({}), the policy matches all requests.

Target: Match by MCP Servers

when:
  target:
    operator: or
    conditions:
      mcpServers:
        values:
          - database-tools
          - code-executor
        condition: in

Target: Match by Models

when:
  target:
    operator: or
    conditions:
      model:
        values:
          - openai-main/gpt-4o
          - anthropic/claude-3-5-sonnet
        condition: in

Target: Match by Metadata

when:
  target:
    operator: or
    conditions:
      metadata:
        environment: production
        tier: enterprise

Requires header: X-TFY-METADATA: {"environment": "production", "tier": "enterprise"}

Target: Match by Specific MCP Tool

when:
  target:
    operator: or
    conditions:
      mcpServers:
        values:
          - database-tools
        condition: in
      mcpTools:
        values:
          - execute_query
        condition: in

Subjects: Users with IN/NOT IN

when:
  subjects:
    operator: and
    conditions:
      in:
        - user:[e-mail]
        - user:[e-mail]
        - team:data-science
      not_in:
        - user:[e-mail]

Combined Target and Subjects

when:
  target:
    operator: or
    conditions:
      mcpServers:
        values:
          - database-tools
        condition: in
      metadata:
        environment: production
  subjects:
    operator: and
    conditions:
      in:
        - team:engineering
      not_in:
        - user:[e-mail]

Both target and subjects conditions must match for the policy to apply.
